EXA Series

EXA Series

Probing boards

Device of supported arm

ARM7TDMI/ARM7TDMI-S, ARM710T, ARM720T, ARM740T, ARM7EJ-S, ARM920T/922T, ARM940T, ARM926EJ-S, ARM946E-S, ARM966E-S, ARM968E-S, ARM996HS, ARM1020E/1022E, ARM1026EJ-S, ARM1136J(F)-S, ARM1156T2(F)-S, ARM1176JZ(F)-S, ARM11 MPCore, Cortex-A9/Cortex-A9 MPCore, Cortex-A8, Cortex-R4(F), Cortex-M0, Cortex-M1, Cortex-M3, ,SC100/110/200/210/300, StrongARM, XScale, 0MAP1, 0MAP2, 0MAP3, 0MAP4, i.MX2x, i.MX3x, i.MX5x

▼ Features

IC mounting evaluation can be do when TQPACK for the emulator connection is used.

It is possible to use it for both TQPACK and NQPACK.(A part of number of pins is excluded)

The signal analyzing is possible to use it for both TQPACK and NQPACK.(except some pin numbers)

These products are in compliance with RoHS which are very safe for environment.

▼ EXA Series

QFP Pin Count IC Body Size
( mm ) IC Lead Pitch
( mm ) Part Number

44 14 x 14 1.00 EXA-044Z-S *

48 7 x 7 0.50 EXA-048SD-S

64 14 x 14 0.80 EXA-064SA-S

80 14 x 20 0.80 EXA-080RA-S

14 x 14 0.65 EXA-080SB-S

12 x 12 0.65 EXA-080SD-S *

100 14 x 20 0.65 EXA-100RB-S

14 x 14 0.50 EXA-100SD-S

112 20 x 20 0.65 EXA-112SB-S

120 16 x 16 0.50 EXA-120SD-S

132 24.2 x 24.2 0.635 EXA-132SC-S *

144 20 x 20 0.50 EXA-144SD-S

160 28 x 28 0.65 EXA-160SB-S *

176 24 x 24 0.50 EXA-176SD-S

208 28 x 28 0.50 EXA-208SD-S

256 27.2 x 39.2 0.50 EXA-256RD-S *

* EXA-044SZ-S,EXA-080SD-S,EXA-112SB-S,EXA-132SC-S,
EXA-160-SB-S and EXA-256RD-ZS are only connected to TQPACK.
They cannot be connected to NQPACK.

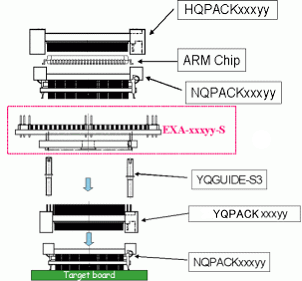

▼ Product composition

HQPACK : Top Cover for IC Package
NQPACK : Connectors for Emulator and QFP
YQGUIDE : Screw-guide pin for YQPACK and YQSOCKET
YQPACK : Joint connectors for Emulator

EXA Series Development of Custom Products

256pin 27.2 x 39.2mm 0.5mm pitch
(EXA-256RD-S)

Please contact us for more information.

* For more information about this product can be confirmed at the following link.
　　[ EXA Series ]

QFP Pin Count	IC Body Size ( mm )	IC Lead Pitch ( mm )	Part Number
44	14 x 14	1.00	EXA-044Z-S *
48	7 x 7	0.50	EXA-048SD-S
64	14 x 14	0.80	EXA-064SA-S
80	14 x 20	0.80	EXA-080RA-S
	14 x 14	0.65	EXA-080SB-S
	12 x 12	0.65	EXA-080SD-S *
100	14 x 20	0.65	EXA-100RB-S
100	14 x 14	0.50	EXA-100SD-S
112	20 x 20	0.65	EXA-112SB-S
120	16 x 16	0.50	EXA-120SD-S
132	24.2 x 24.2	0.635	EXA-132SC-S *
144	20 x 20	0.50	EXA-144SD-S
160	28 x 28	0.65	EXA-160SB-S *
176	24 x 24	0.50	EXA-176SD-S
208	28 x 28	0.50	EXA-208SD-S
256	27.2 x 39.2	0.50	EXA-256RD-S *

EXA Series	Development of Custom Products
256pin 27.2 x 39.2mm 0.5mm pitch (EXA-256RD-S)	Please contact us for more information.
