EXA Series Features

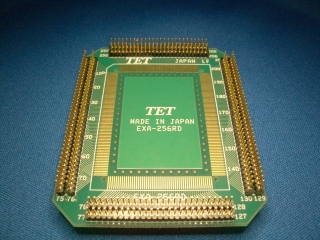

Probing Adapter,EXA
  • IC mounting evaluation can be do when TQPACK for the emulator connection is used.

  • It is possible to use it for both TQPACK and NQPACK.(A part of number of pins is excluded).

  • The signal analyzing is possible to use it for both TQPACK and NQPACK.(except some pin numbers)

  • These products are in compliance with RoHS which are very safe for environment.

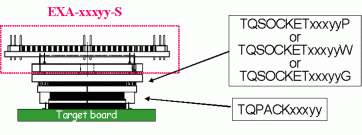

Product composition With TQPACK Series


New EXA series

 Application Example
image image

TQPACK
TQSOCKET
: Connectors for Emulator
: Socket for TQPACK		 Guide Pin Type

●G=3.0mm
●W=3.9mm
●P=6.0mm
●(a)=TQSOCKET-F type

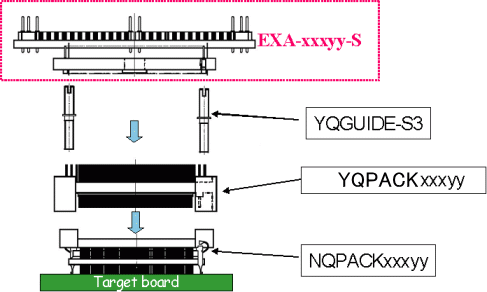

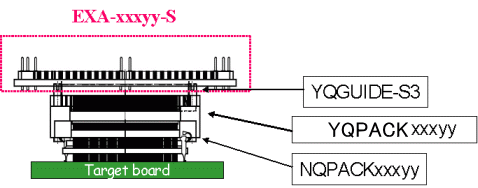

Product composition With NQPACK Series


NQPACK
YQPACK
YQGUIDE
: Connectors for Emulator and QFP
: Joint connectors for emulator
: Screw-guide pin for YQPACK and YQSOCKET


EXA-Standard Conversion Adapter configuration

Previous product EXA part number
Upper board Lower board
EXB-TQ044SZ-U/PR EXB-TQ044SZ-L EXA-044SZ-S (*)
EXB-TQ064SA-U/PR EXB-TQ064SA-L EXA-064SA-S
EXB-TQ080RA-U/PR EXB-TQ080RA-L EXA-080RA-S
EXB-TQ080SB-U/PR EXB-TQ080SB-L EXA-080SB-S
EXB-TQ080SD-U/PR EXB-TQ080SD-L EXA-080SD-S (*)
EXB-TQ100RB-U/PR EXB-TQ100RB-L EXA-100RB-S
EXB-TQ100SD-U/PR EXB-TQ100SD-L EXA-100SD-S
SEXB-TQ112SB-U/PR SEXB-TQ112SB-L EXA-112SB-S
SEXB-TQ120SD-U/PR SEXB-TQ120SD-L EXA-120SD-S
SEXB-TQ132SC-U/PR SEXB-TQ132SC-L EXA-132SC-S (*)
SEXB-TQ144SD-U/PR SEXB-TQ144SD-L EXA-144SD-S
SEXB-TQ160SB-U/PR SEXB-TQ160SB-L EXA-160SB-S (*)
SEXB-TQ176SD-U/PR SEXB-TQ176SD-L EXA-176SD-S
SEXB-TQ208SD-U/PR SEXB-TQ208SD-L EXA-208SD-S
SEXB-TQ256RD-PR EXA-256RD-S (*)

(*) EXA-044SZ-S,EXA-080SD-S,EXA-112SB-S,EXA-132SC-S,
EXA-160-SB-S and EXA-256RD-ZS are only connected to TQPACK.
They cannot be connected to NQPACK.
