NSPACK Series Features

NSPACK Series Features

Sockets for Emulator and SSOP

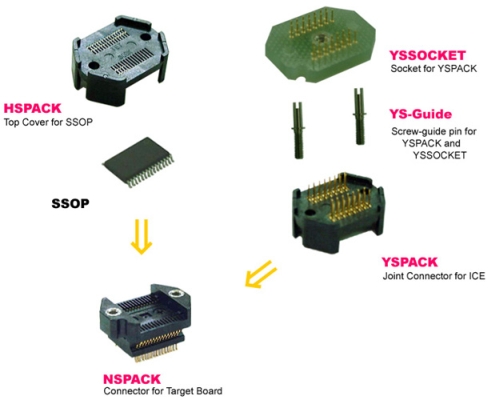

▼ NSPACK / YSPACK / HSPACK / YSSOCKET

SSOP can be loaded in between NSPACK and HSPACK.

Emulator board can be connected to YSPACK and NSPACK assembled on a target board.

Emulator cable or PWB can be connected to YSPACK / YSSOCKET.

NSPACK can be assembled on the same foot pattern of SSOP.

Therse products are in conmliance with RoHS which are very safe for environment.

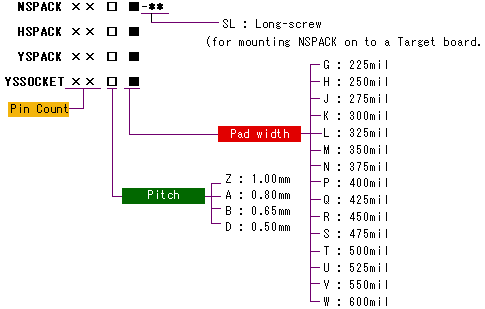

Part Number Designation

Series Pin Count Contact Pitch PAD Width Others

NSPACK xx Y : 1.27mm

Z : 1.00mm

A : 0.80mm

B : 0.65mm

D : 0.50mm J : 275mil

K : 300mil

L : 325mil

U : 525mil *1

HSPACK -

YSPACK

YSSOCKET *2

*1 -SL = Long Screw

*2 N = without fastener

F = with fastener

F-2 = Two YSSOCKET

Application Examples

[ SSOP loading ] [ Connection to ICE / PWB ]

Attachment items

NSPACK

Screwdriver, one piece ( for fixing HSPACK and NSPACK, or YSPACK and NSPACK )

HSPACK

Screws M2 x 6mm, 2 pcs( for fixing HSPACK onto NSPACK )

YSPACK

Screws M2 x 6mm, 2 pcs ( for fixing HSPACK onto NSPACK )

YSSOCKET F2

YS-Guide, 1 set (2 pcs)

YSGUIDE-S1

Series	Pin Count	Contact Pitch	PAD Width	Others
NSPACK	xx	Y : 1.27mm Z : 1.00mm A : 0.80mm B : 0.65mm D : 0.50mm	J : 275mil K : 300mil L : 325mil U : 525mil	*1
HSPACK				-
YSPACK				-
YSSOCKET				*2

*1	-SL	= Long Screw
*2	N	= without fastener
	F	= with fastener
	F-2	= Two YSSOCKET
