(1) Tool is not required. Socket for specially shaped package can be made with cutting tool.

Customer's Request

  • to have high operability construction as IC devices are frequently exchanged.


  • to connect without soldering.


  • to have firm contact with IC leads.

Our Proposal

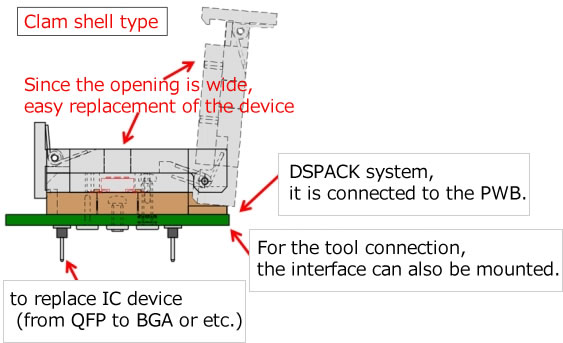

  • Clam Shell Type.


  • connection with board to connector.

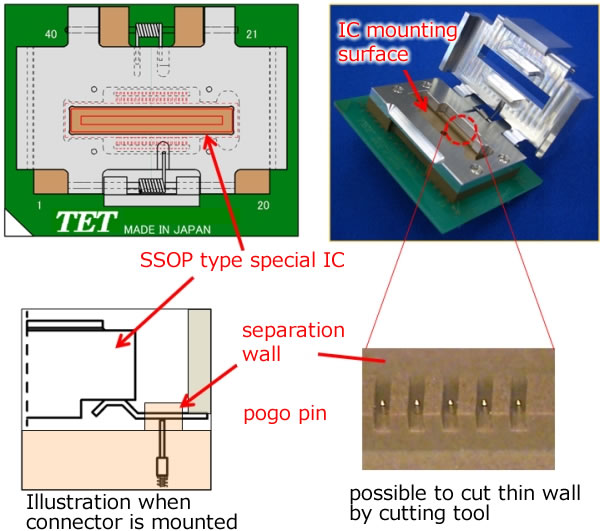

  • Separation wall to avoid short circuit between neighboring pins, and pogo pin to make contact sure.




クラムシェル構造
