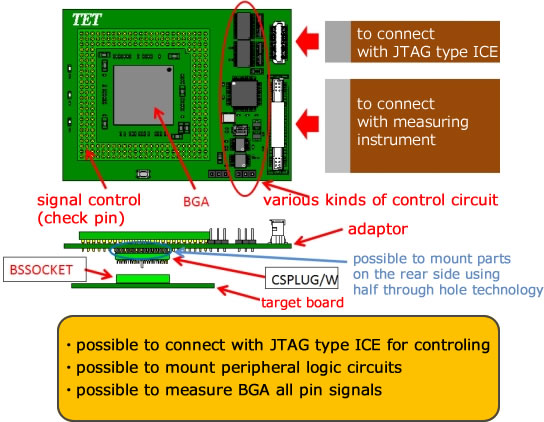

(2) Conversion Board, having JTAG or Measuring Instrument Interface, to measure all pin signals.
Customer's Request
- to measure BGA signals mounted on the board.
- to connect with JTAG type ICE for controlling.
- to connect with Measuring Instrument for controlling.
Our Proposal
- to have advantageous space factor adopting half through hole board,
using original BGA foot pattern on the target board.
- In order to satisfy specified resistance, wiring pattern and parts location shall be
investigated, utilizing design technology of isometric wiring and others.
