(8) Conversion board from QFP to LGA

Customer's Request

  • to reduce the board as much as possible, you want to convert the QFP to LGA.

  • LGA was using the existing socket (screwed type to the PWB).

Our Proposal

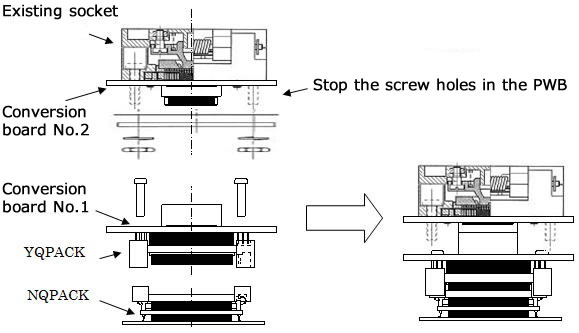

  • Using the half-through-hole technology to achieve miniaturization by causing implementing YQPACK, was connected with the NQPACK (QFP).

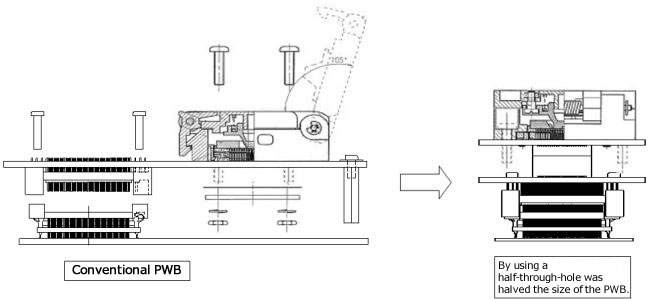

  • By the PWB to a two-stage configuration, the size of the PWB is miniaturized.
