Features
QFP Sockets
▼ NQPACK Series Features
| NQPACK | HQPACK | YQPACK |
| QFP socket | QFP socket cover | Emulator connector |
.jpg) |
.jpg) |
.jpg) |
| Attached to the target board as a socket to mount a QFP IC, or as a connector an emulator. | Top Cover for IC Package. Used when placing QFP packages onto NQPACK. |
Used to connect the emulator to NQPACK to retrieve signals from NQPACK. |

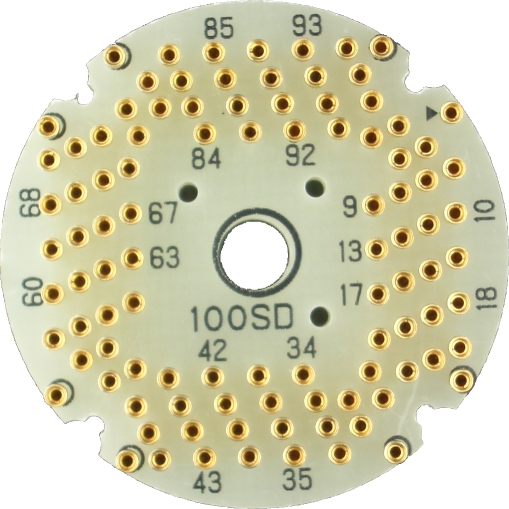

| YQSOCKET | LOCK COVER | LQSOCKET |
| Socket for emulator | Cover for mounting IC | Socket for emulator connector |
.jpg) |
.jpg) |
.jpg) |
| Used to adjust the height between the target board and emulator cable or board. * Once this product is out of stock, it will be replaced with the pin number indication type. |
By simplifying the tightening of screws at the four corners of the socket, the complex mounting procedures are eliminated. | Can be inserted with the LOCK COVER mounted. Indication of pin numbers facilitates to find pins. |
Unification of NQPACK -ND products
Features
- QFP loading and emulator connection are possible with NQPACK series
- Emulator cable or PWB can be connected to YQPACK with YQSOCKET.
- Height can be adjusted by attaching YQSOCKET to the emulator cable or board.
- Suitable for 32pin (7.0mm x 7.0mm) to 272pin (36.0mm x 36.0mm) QFP ICs.
- Surface mounted devices (under 2mm) can be mounted around patterns.
- These products are in compliance with RoHS which are very safe for environment.
NQPACK + IC + HQPACK NQPACK + YQPACK NQPACK, HQPACK and YQPACK are the emulation Sockets. IC package should not be placed between NQPACK and YQPACK. * Please use the sockets for test applications only.
.jpg)
.jpg)

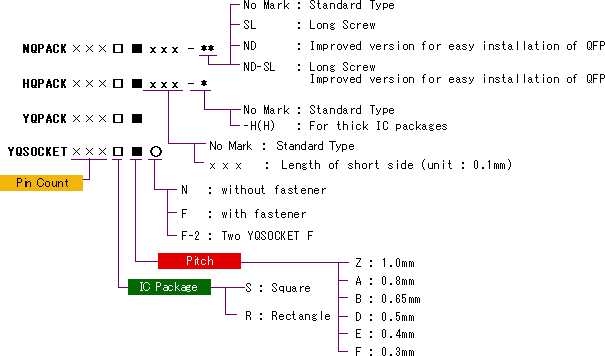

Part Number Designation
| Series | Pin Count |
IC Package |
Contact Pitch |
IC Size | Others | ||
| NQPACK | xxx | S : Square R : Rectangle |
Z : 1.00mm A : 0.80mm B : 0.65mm D : 0.50mm E : 0.40mm F : 0.30mm |
No Mark : | Standard Type | No Mark : | Standard Type |
| -SL : | Long Screw | ||||||
| -ND : | Improved version for easy installation of QFP | ||||||
| xxx : | Length of short side (unit : 0.1mm) |
-ND -SL : | Improved version for easy installation of QFP / Long Screw | ||||
| HQPACK | No Mark : -H : (H) |
Standard Type For thick IC packages |
|||||
| YQPACK | - | ||||||
| YQSOCKET | - | N : F : F-2 : |
without fastener with fastener Two YQSOCKET F |
||||
* Only the name of articles rule. Please inquire whether the product has developed.
* Sockets should be selected based on lead length. The most suitable socket may vary among QFP packages with identical pin count, lead pitch and IC body size. Make sure you select the appropriate socket by referring to "Products Ranges & Technical Drawings."
* The supported IC size for NQPACK256SE296 is 30.0 x 30.0mm. Note that the product name/number does not indicate the actual IC size.
* The supported IC size for HQPACK100RB1622 is 16.0 x 22.0mm. Note that "1622" in the product name/number indicates the length of both sides of the IC, not the length of the short side.
LOCK COVER
▼ Features
- By simplifying the tightening of screws at the four corners of the socket for QFP IC, the complex mounting procedures are eliminated.
- Poor contacts caused by uneven tightening of screws are reduced.
- Can be used for emulators and conversion boards.

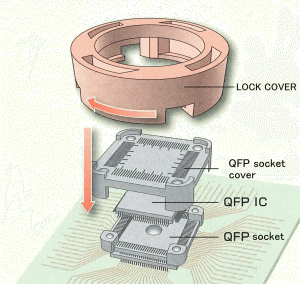

NQPACK + QFP IC + HQPACK + LOCK COVER
Example-1
(For mounting an IC)
Example-2
(For connecting an emulator. etc.)
▼ LOCK COVER Series
[ as of Sep 2013 ]
.gif)
.jpg)
| Pin Count |
Pitch | IC Package |
Subject Socket | Part Number | Technical Drawings |
|
| NQPACK | HQPACK | |||||
| 48 | 0.5 | Square | NQPACK048SD | HQPACK048SD | LC-S170B-1 |  |
| 64 | 0.4 | NQPACK064SE | HQPACK064SE | |||
| 0.5 | NQPACK064SD-ND | HQPACK064SD | LC-S190B-1 | |
||
| 80 | 0.4 | NQPACK080SE | HQPACK080SE | |||
| 0.5 | NQPACK080SD | HQPACK080SD | LC-S210B-1 | |
||
| 0.65 | NQPACK080SB | HQPACK080SB | LC-S241B-1 | |
||
| HQPACK080SB160 | ||||||
| 0.8 | Rectangle | NQPACK080RA | HQPACK080RA | LC-R30XB-1 | |
|
| HQPACK080RA160 | ||||||
| HQPACK080RA168 | ||||||
| HQPACK080RA178 | ||||||
| 100 | 0.4 | Square | NQPACK100SE | HQPACK100SE | LC-S210B-1 | |
| 0.5 | NQPACK100SD-ND | HQPACK100SD | LC-S230A-1 | |
||
| HQPACK100SD166 | ||||||
| 0.65 | NQPACK100SB | HQPACK100SB | LC-S281B-1 | |
||
| 0.65 | Rectangle | NQPACK100RB | HQPACK100RB | LC-R30XB-1 | |
|
| HQPACK100RB1622 | ||||||
| HQPACK100RB168 | ||||||
| HQPACK100RB179 | ||||||
| 120 | 0.4 | Square | NQPACK120SE | HQPACK120SE | LC-S230A-1 | |
| 0.5 | NQPACK120SD220 | HQPACK120SD220 | LC-S290B-1 | |
||
| HQPACK120SD226 | ||||||
| 128 | 0.4 | NQPACK128SE | HQPACK128SE | LC-S230A-1 | |
|
| 0.5 | NQPACK128SD | HQPACK128SD | LC-S270B-1 | |
||
| NQPACK128SD220 | HQPACK128SD220 | LC-S290B-1 | |
|||
| Rectangle | NQPACK128RD | HQPACK128RD | LC-R30XB-1 | |
||
| HQPACK128RD172 | ||||||
| 144 | 0.4 | Square | NQPACK144SE | HQPACK144SE | LC-S250B-1 | |
| 0.5 | NQPACK144SD-ND | HQPACK144SD *1 | LC-S290B-1 | |
||
| 160 | 0.5 | NQPACK160SD260 | HQPACK160SD260 | LC-S330B-1 | |
|
| 176 | 0.4 | NQPACK176SE | HQPACK176SE | LC-S290B-1 | |
|
| 0.5 | NQPACK176SD-ND | HQPACK176SD | LC-S330B-1 | |
||
| 208 | 0.5 | NQPACK208SD | HQPACK208SD *2 | LC-S370B-1 | |
|
| HQPACK208SD306 | ||||||
| HQPACK208SD306H | ||||||
| 216 | 0.4 | NQPACK216SE | HQPACK216SE | LC-S330B-1 | |
|
| 240 | 0.5 | NQPACK240SD | HQPACK240SD *3 | LC-S410B-1 | |
|
| 256 | 0.4 | NQPACK256SE | HQPACK256SE | LC-S375B-1 | |
|
| NQPACK256SE296 | HQPACK256SE300 |
*1 This product cannot be used with HQPACK144SD226-H.
*2 This product cannot be used with HQPACK208SD306H.
*3 This product cannot be used with HQPACK240SD-H.
