Examples

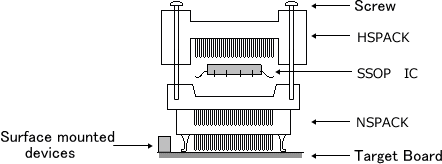

IC Package loading
▼ IC Package Installation
Connector Selection
*The combination of these connectors will vary according to the IC connector
configuration of the emulator.
Please contact the emulator manufacturer for details.

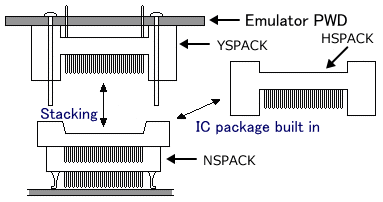

▼ Stacking connector, YSPACK, is fixed a tool.

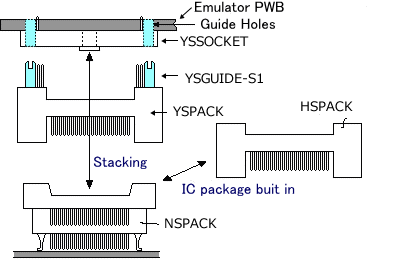

▼ Stacking connector, YSSOCKET, is fixed to a tool.

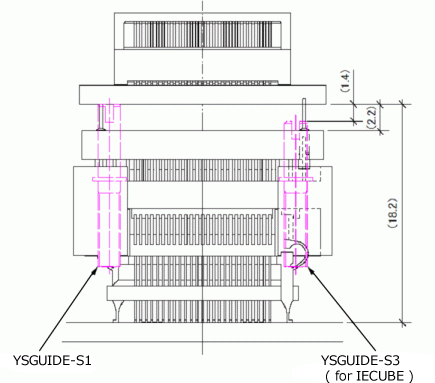

| YSGUIDE-S1 |
YSGUIDE-S3 ( for IECUBE ) |
.gif) |
.gif) |
YSPACK Application
▼ FPC Connection
▼ PWB and Ribbon Cable Connection
| a |
YSPACK |
| b |
Screw for YSPACK |
| c |
FPC |
| d |
Ribbon Cable |
| e |
Connector |
| f |
Emulator PWB |
| g |
Emulator PWB |

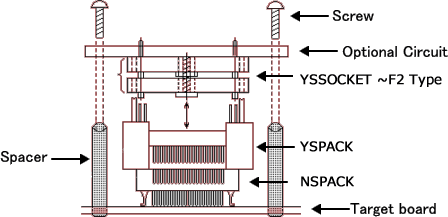

▼ Optional Circuit Connection
✽ When the optional circuit is unstable due to its size/weight
✽ To fix NSPACK to a board using a screw
▽ SL Type
NSPACK-SL can be fixed firmly with a screw and a nut provided on the bottom,as illustrated under.
(Mounting hole should be provide at the center of NSPACK.)
This fixing method is only a supplement to soldering.
|
We recommend that you attach the legs of the NSPACK to the target board with epoxy or instant adhesives before soldering the lead of the NSPACK to the board.
|
PWB assembly on YSPACK / YSSOCKET
▼ Stacking with YSSOCKET
YSSOCKET is used to adjust the height between the target board and the emulator cable or board.
YSSOCKET can be attached to the cable or board.
You can stack multiple YSSOCKETs between YSPACK and YSSOCKET to obtain the required height.
We also offer the "-F2" type, a single connector comprised of two YSSOCKETs stacked together.
|
f
|
Emulator PWB
|
|
g
|
NSPACK
|
|
h
|
YSPACK
|
|
i
|
YSGUIDE
|
|
j
|
YSSOCKET - F2 Type
|
|
o
|
Target PWB
|
|
*YSSOCKET - F2 is provided with two YSGUIDE pins.
|
(Notes) YSSOCKET-F2 TYPE
YSSOCKET-F2 type is a single connector comprised of two YSSOCKETs stacked together and fixed with hollow set screws.Note the space between the two connectors, which is equal to a maximum of one pitch length of the screw (0.4mm for M2).
Make sure to check the height and space between each connector used in your design.
▼ Multiple YSSOCKET stacking
.gif)
