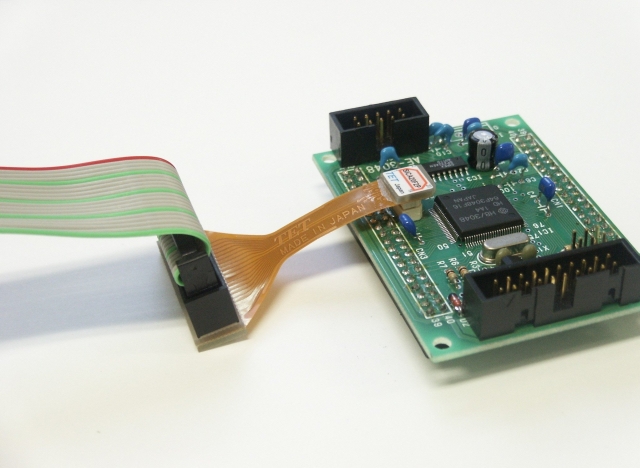

SICA 2.54mm pitch type Catalogue
- Conversion adapter for JTAG -
Reducing connector space to one sixth compared to plug / pin connectors of 2.54mm center pitch.
Features
- Reducing connector space to one sixth compared to plug / pin connectors of 2.54mm center pitch.
- The target board connector surface mounted on PCB without needing any "through
holes". Now, the other side of PCB is available for mounting components.
- This cable is very flexible. Therefore, the target board connector can be placed close to CPU.
- Connector contact life is 500 times of insertion and extraction.
- A polarity key prevents the user to plug the connectors in the wrong direction.
- This cable is lead free product which is very safe for environment.
Specifications
| Target pin numbers |
for 10pin, 14pin, 16pin, and 20pin |
| Cable material |
Polyimide FPC double layers |
| Socket at target board |
SICA2P20S |
SSOP 20pin 0.5mm pitch with TET customs
(One connector is appended with the product.) |
| Cable DC resistance |
Less than 0.3 ohm |
| Connect life times |
500 times of insertion and extraction with enclosed socket for target board |
Cable and accessory part
| SICA cable |
One piece |
| Socket at target board(SICA2P20S) |
One piece |

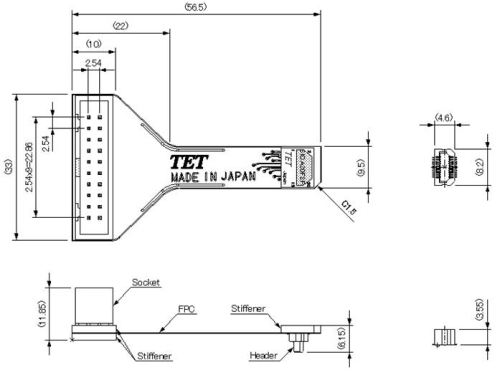

Mechanical Drawing
SICA20F2P
Option part up on request
| SICA2P20S05 |
5 piece are packed in a plastic bag |
