EXC Series

EXC Series

EXC series is a great value set of products has become one necessary when performing debugging and writing of the QFP package.

Model number	Constitution
Model number	PWB	HQPACK	LOCK Cover

EXC-048SD-SET	EXC-048SD	HQPACK048SD	LC-S170B-1
EXC-064SD-ND-SET	EXC-064SD-ND	HQPACK064SD	LC-S190B-1
EXC-080SB-SET	EXC-080SB	HQPACK080SB	LC-S241B-1
EXC-080SD-ND-SET	EXC-080SD-ND	HQPACK080SD	LC-S210B-1
EXC-100SD-ND-SET	EXC-100SD-ND	HQPACK100SD	LC-S230A-1
EXC-128RD-SET	EXC-128RD	HQPACK128RD	LC-R30XB-1
EXC-144SD-ND-SET	EXC-144SD-ND	HQPACK144SD	LC-S290B-1

※ Attachment Items

Screws M2x6mm, 4pcs.(for fixing HQPACK onto NQPACK)

Dedicated Screw driver, one piece
（Use in conventional screws is also possible.）

PWB

◎NQPACK have been implemented from the beginning to the PWB.

Time and effort to implement the NQPACK can be saved.

◎It is drawn out all pins at 2.54mm pitch.

Or to connect a pin header, with or jumper only where required, and can be used in various ways.

HQPACK

◎HQPACK has been set.

It is possible to prevent the purchase of forgetting HQPACK, you can do the work immediately.

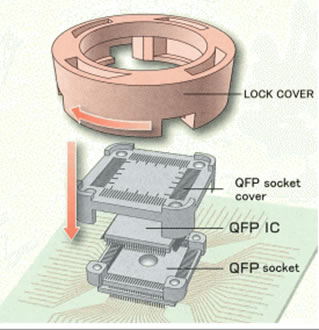

LOCK Cover

◎Equipped and exchange of QFP package will be performed quickly.

Unnecessary screw tightening work. Also you do not need tools.

Tightening torque management of the screw is not required.
