TQPACK Series Features

TQPACK Series Features

Emulator Connectors

▼ TQPACK / TQSOCKET Series

TQSOCKET can be assembled with extension cables or emulator boards.

TQPACK can be assembled on the same foot pattern of QFP.

These products are in compliance with RoHS which are very safe for environment.

TQSOCKET Guide Pin Type

G=3.0mm
W=3.9mm
P=6.0mm
(a)=TQSOCKET-F Type

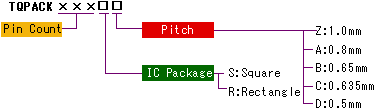

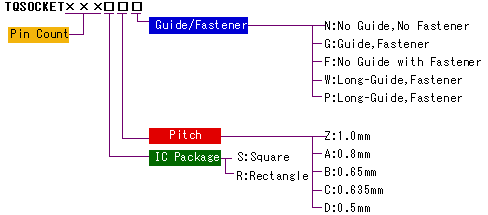

Part Number Designation

Series Pin Count QFP Body Contact pitch Others

TQPACK xxx S : Square

R : Rectangle Z : 1.00mm

A : 0.80mm

B : 0.65mm

C : 0.635mm

D : 0.50mm
-

TQSOCKET *1

(Only the name of articles rule. Please inquirewhether the product has developed. )

*1 N = No guide, No fastener

F = No guide, with fastener

G = 3.0mm guide, with fastener

W = 3.9mm guide, with fastener

P = 6.0mm guide, with fastener


TQSOCKET	Guide Pin Type G=3.0mm W=3.9mm P=6.0mm (a)=TQSOCKET-F Type

Series	Pin Count	QFP Body	Contact pitch	Others
TQPACK	xxx	S : Square R : Rectangle	Z : 1.00mm A : 0.80mm B : 0.65mm C : 0.635mm D : 0.50mm	-
TQSOCKET	xxx	S : Square R : Rectangle	Z : 1.00mm A : 0.80mm B : 0.65mm C : 0.635mm D : 0.50mm	*1

*1	N = No guide, No fastener
	F = No guide, with fastener
	G = 3.0mm guide, with fastener
	W = 3.9mm guide, with fastener
	P = 6.0mm guide, with fastener
